Isolation Valves

What is an Isolation Valve?

An isolation valve (also known as a shut-off valve, on-off valve, blowdown valve, or stop valve) is a critical component in a fluid handling system designed to stop the flow of process media - such as gas, liquid, slurry, or powder - to a specific location.

These valves typically operate in either a fully closed or fully open position to direct process media, protect equipment during emergencies, and facilitate safe maintenance.

Key Functions and Applications

Isolation valves are widely used across various industrial facilities for several purposes:

• Safe Maintenance: They isolate sections of a pipeline to ensure that equipment (like control valves, pumps, and storage tanks) can be safely serviced or repaired.
• Emergency Protection: They provide a safety barrier during emergencies, allowing for rapid system shutdowns (e.g., in nuclear power plants, main steam isolation valves quickly isolate pipelines if a pipe breaks).
• Process Control: They are used for on/off process control, connecting external equipment, and facilitating system testing.

Common Types of Isolation Valves

Depending on process conditions and system design, isolation valves come in various designs, including:

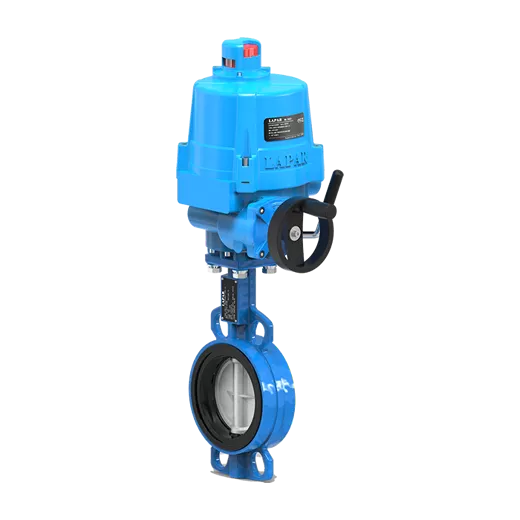

• Ball Valves, Gate Valves, and Butterfly Valves: Commonly used for general industrial isolation.
• Diaphragm Valves: Ideal for handling corrosive or high-purity fluids because a flexible diaphragm shields the fluid from internal components.
• Pinch Valves: Operate by pinching a disposable tube, effectively isolating the valve mechanism from the media.
• Triple Offset Valves, Globe Valves, and Knife Gate Valves: Used for specialized industrial applications.

Environmental and Safety Considerations

Valves are a primary source of fugitive emissions (leakage) in process facilities. Leaks can occur around the valve stem, body seals, and end connections. To comply with increasingly strict environmental regulations, modern isolation valve technology focuses on low-emission designs. These feature quarter-turn actuation, proven stem seal systems, minimal body joints, and welded end connections to prevent the unintended release of process media.
