LPZ11 Solenoid Valve, 5/2 way solenoid valve, 3/2 way solenoid valve

LPZ11 Solenoid Valve cataloguesLapar solenoid valve applies the requirements for NAMUR and in-line(pipe)connection and can be adapted for 3/2 NC or 5/2 functions for controlling double-acting and single-acting pneumatic actuators by a adapter.

Feature

  1. The plate joint type is meet NAMUR standard, the pipe joint type is meet ISO5599-1 standard.
  2. Using customized O-ring, so don't need to add lube oil additionally.

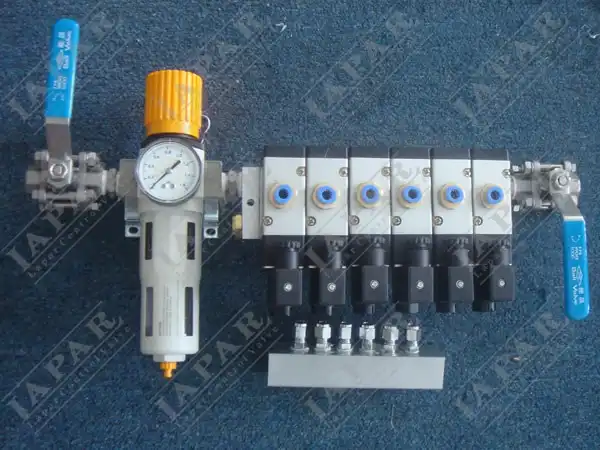

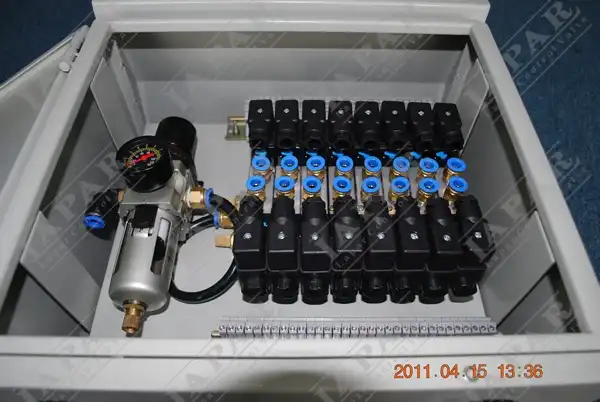

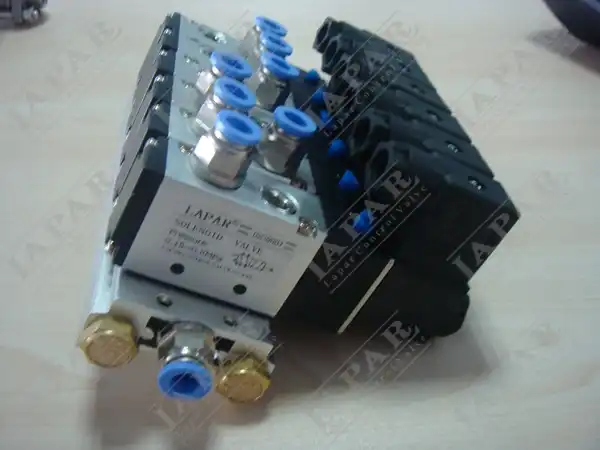

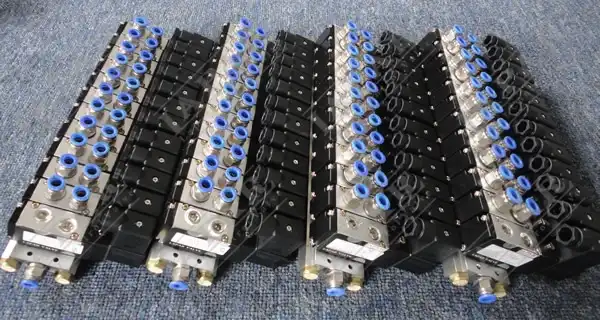

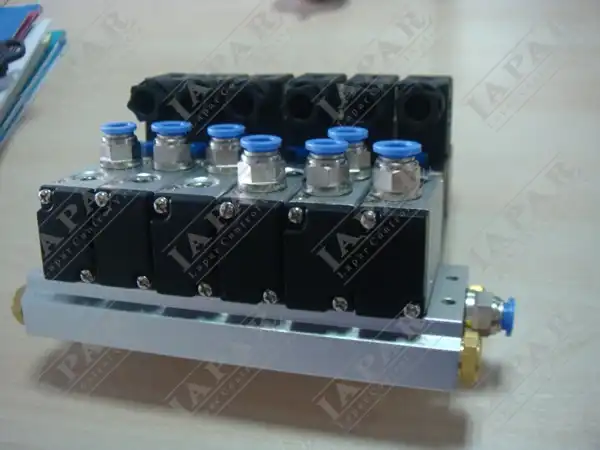

  3. The pipe joint type can integrate one or more valve group with the same series solenoid valves.

Parameter

Installation standard NAMUR / VDI / VD3845
Excitation Time 40ms
Voltage Range ±10%
Power Consumption AC:5.0VA~9.0VA
DC:2.5W~6.5W
Ambient Temperature -20~+60℃
Enclosure Class IP66
Structure Plate Connection
Pipe Connection
Insulation Class F Class
Actinge Type Inner Guide Type
Cable entries M20x1.5
Medium Fittered dry compressed air
Max.Frequency 5 Times/Sec
Working Pressure 0.15~0.85MPa
Body Material ADC12, SS316
