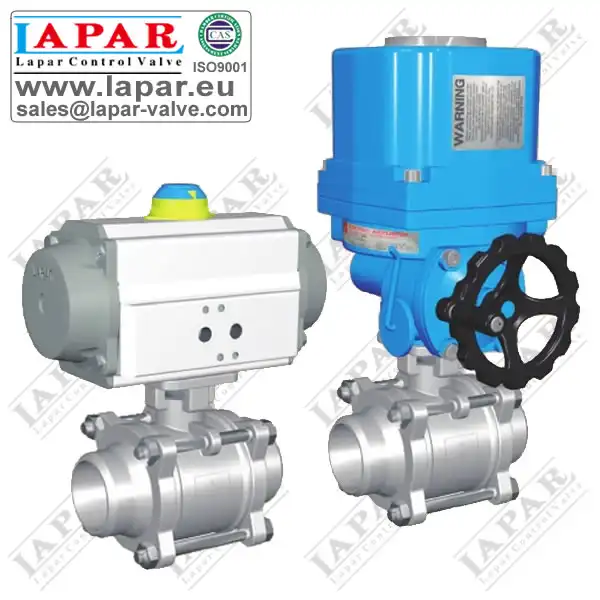

LPA15 Welded Ball Valve

LPA15 Welded Ball Valve

Welded Ball Valve, Welding Ball Valves

LPA15 Welding Ball Valve PDF catalogues

Design Feature

  1. Lost-wax precision casting
  2. Fire Safe design approved
  3. Built-in ISO5211 direct mounting pad for easy automation
  4. Anti-static devices for ball-stem-body
  5. Blow-out proof stem
  6. Pressure balance hole in ball slot
  7. TA-LUFT design approved

Standard

  1. Design: ASME B16.35, API 608
  2. Pipe Thread: ASME B1.20.1, BS21, DIN 299/259, ISO 7/1, ISO 228/1, JIS B 0203
  3. Inspection & Testing: API 598 EN 12266

Parameter

Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 8~100mm
Pressure 1.6~6.3Mpa
Temperature PTFE, TFM1600: -29~178°C
EK: -29~250°C
Connection Welding
Structure Three-piece
Body Material SS316L, SS316, SS304, SS304L, WCB
Ball Material SS316L, SS316, SS304, SS304L
Sealing Material PTFE, TFM1600, EK
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
