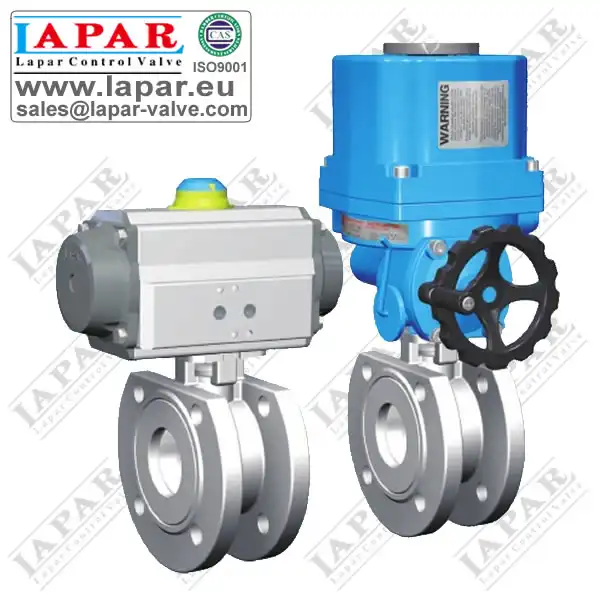

LPA16 Thin Ball Valve

Thin Ball Valves, Italy Type Ball Valve

LPA16 Thin Ball Valve PDF catalogues

Design Feature

  1. Anti Blow-Out Stem
  2. Antistatic Device
  3. Fire Safe Design
  4. Soft Seated or Metal Seated
  5. Low Fugitive Emission
  6. Double Block and Bleed
  7. Welded or Bolted Body
  8. Self Relieving Seats or Double Piston Effect
  9. Extended Stem
  10. Cryogenic Extended Bonnet
  11. Lost-wax precision casting
  12. Fire Safe Design approved
  13. Built-in ISO5211 direct mounting pad for easy automation
  14. Anti-static devices for ball-stem-body
  15. Blow-out proof stem
  16. TA-LUFT design approved

Severe application

  1. Corrosive
  2. Erosive
  3. High Temperature
  4. Cryogenic
  5. Underground
  6. Subsea
  7. Other Special Requirements

Material

  1. Carbon Steel
  2. LT Carbon Steel, Impact Tested
  3. Ferritic/Austenitic Stainless Steel (Duplex - Super Duplex)
  4. Austenitic Stainless Steel
  5. Austenitic Stainless Steel (6Mo)
  6. Hardened Stainless Steel - Precipitation
  7. Martensitic Stainless Steel
  8. High Strength Low Alloyed Steel
  9. Non-Ferrous Steel, Nickel Alloy
  10. Titanium
  11. Exotic Materials

Standard

  1. Design: DIN 3357/1.2, EN12516-1
  2. Flanged End: DIN EN1092-1 PN10-PN40
  3. Inspection & Testing: DIN 3230/3, EN12266
  4. Fire Safe: API 607 5th2005, IOS 10497

Parameter

Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 15~150mm
Pressure 1.6~4.0Mpa
Temperature PTFE, TFM1600: -29~178°C
EK: -29~250°C
Connection Flange, Wafer
Structure One-piece
Body Material SS316L, SS316, SS304, SS304L, WCB
Ball Material SS316L, SS316, SS304, SS304L
Sealing Material PTFE, TFM1600, EK
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
