LPB15 Fluorine Lined Butterfly Valve

LPB15 Fluorine Lined Butterfly Valve

Fluorine Lined Butterfly Valve, Chemical Buttefly Valve

LPB15 Fluorine Lined Butterfly Valve catalogues

Design Feature

  1. Optional stainless steel body
  2. Applicable chemical medium
  3. Flange contection
  4. Disc in the hole under the friction surface using spherical design, torque is smaller, better sealing

Parameter

Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 50~600mm
Pressure 1.0~1.6Mpa
Temperature PTFE: -29~150°C
FEP: -30~100°C
Connection Wafer
Structure A Type, LT Type
Body Material SS316, SS304, WCB, Casting Iron, Ductile Iron
Disc Material SS316, SS304, WCB, Casting Iron, Ductile Iron
Seat Material PTFE (F4), FEP (F6)
Medium Acids, Alkalis, Strong oxidizing agents
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve

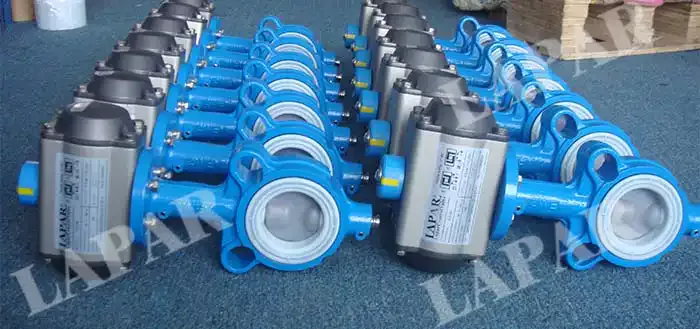

Pneumatic Fluorine Lined Butterfly Valve

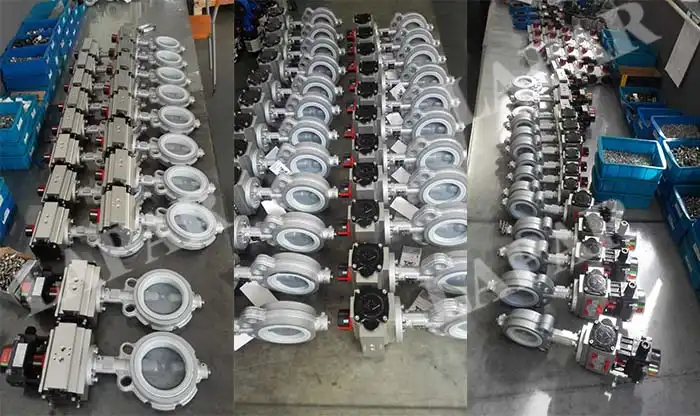

LPB15 Teflon Lined Butterfly ValveLPB15 Teflon Lined Butterfly Valve

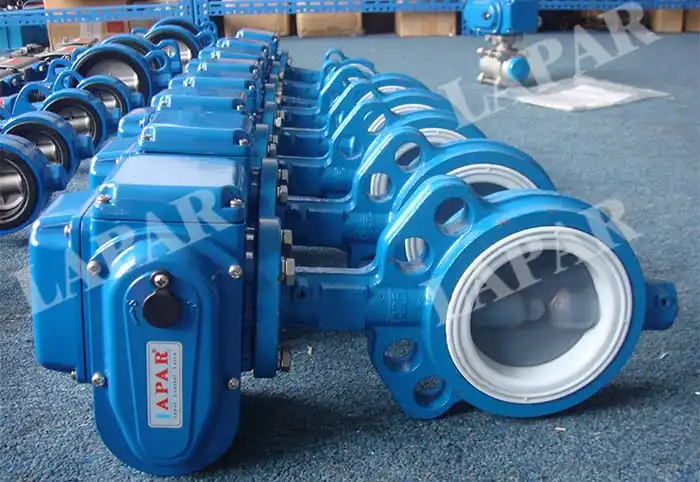

Electric Fluorine Lined Butterfly Valve

LPB15 Teflon Lined Butterfly Valve
